Optimizing 3D Model Rendering in Next.js by Reducing Blocking Time Using React Fiber Offscreen

Optimize 3D Model Rendering in Next.js by Reducing Blocking Time Using React Fiber Offscreen

Whenever we use CPU-intensive operation on the Web, it becomes sluggish and un-interactable for some time. Rendering a 3D model directly affects the initial loading time of the Web, so we can use Web Workers to load them behind the scenes.

In this article, we will optimize the loading time of our model which we built in the following article:

Creating Animated Avatar for your Portfolio Website Using Ready Player, Mixamo, Next.js

If you want to study Web Workers in general, you can visit the following article:

Optimizing Your Next.js App By Offloading Compute-Intensive Tasks from Main Thread to Web Workers

Now without further ado, let's start our tutorial!

1) Install React Three Fiber:

To render your model in Web Worker you can install the following dependency using:

npm install @react-three/offscreen

2) Moving all the Children of Canvas into Another File:

In the previous “Animated Avatar” tutorial we had our model rendered something like this:

// components/avatar-renderer.tsx

"use client";

import { Suspense } from "react";

import { Canvas } from "@react-three/fiber";
import { Environment, OrbitControls } from "@react-three/drei";

import Avatar from "@/Avatar";

const ModelRenderer = () => {
  return (
    <div className="w-full h-auto aspect-[24/25]">
      <Suspense
        fallback={
          <div className="w-full flex items-center justify-center h-[calc(100vh-300px)] font-bold text-[30px] font-mono text-white">
            loading...
          </div>
        }
      >
        <Canvas
          shadows="basic"
          // adjust camera parameters according to your needs
          camera={{
            position: [0, -5, 1.5],
            fov: 50,
            castShadow: true,
            zoom: 1.3,
          }}
          className="w-full h-full"
        >
          <OrbitControls />
          <ambientLight intensity={1.5} />
          <Environment preset="sunset" />
          <directionalLight intensity={0.8} />
          <Avatar />
        </Canvas>
      </Suspense>
    </div>
  );
};

export default ModelRenderer;

Now we will divide this into different files.

First, we will create scence.tsx which will contain our scene as follows:

// scene.tsx

"use client";

import Avatar from "@/Avatar";

import { Environment, OrbitControls } from "@react-three/drei";

const Scene = () => {
  return (
    <>
      <OrbitControls />
      <ambientLight intensity={1.5} />
      <Environment preset="sunset" />
      <directionalLight intensity={0.8} />
      <Avatar />
    </>
  );
};

export default Scene;

Now we will create a worker named worker.tsx which will import the scene as follows:

// worker.tsx

"use client";

import { render } from "@react-three/offscreen";

import Scene from "./scene";

render(<Scene />);

Now, in the model-renderer.tsx , rather than importing Canvas from @react-three/fiber now we will import from @react-three/offscreen and configure our components as follows:

// components/avatar-renderer.tsx

"use client";

import { Suspense, lazy } from "react";
import { Canvas } from "@react-three/offscreen";

const Scene = lazy(() => import("./scene"));

const worker = new Worker(new URL("./worker.tsx", import.meta.url), {
  type: "module",
});

const ModelRenderer = () => {
  return (
    <div className="w-full h-auto aspect-[24/25]">
      <Suspense
        fallback={
          <div className="w-full flex items-center justify-center h-[calc(100vh-300px)] font-bold text-[30px] font-mono text-white">
            loading...
          </div>
        }
      >
        <Canvas
          worker={worker}
          fallback={<Scene />}
          shadows="basic"
          camera={{
            position: [0, -5, 1.5],
            fov: 50,
            castShadow: true,
            zoom: 1.3,
          }}
          className="w-full h-full"
        />
      </Suspense>
    </div>
  );
};

export default ModelRenderer;

Make sure to import ModelRenderer dynamically as follows:

import dynamic from "next/dynamic";

const ModelRenderer = dynamic(() => import("@/components/model-renderer"), {
  ssr: false,
});

const Page = () => {
  return <>
    {/* ... any other code */}
    <ModelRenderer />
  </>
}

export default Page;

Testing Blocking Time:

Now we will test for blocking time. The rendered model without the Web Worker is deployed at: https://next-with-animated-avatar.vercel.app/, and it gave the following results:

Model Blocking Time Without Web Worker

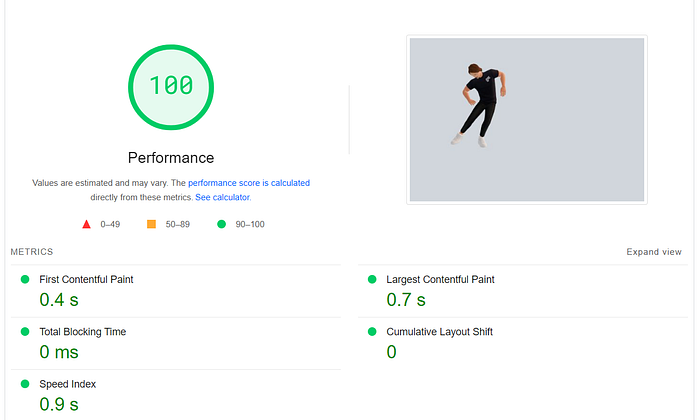

The model rendered using Web Worker can be found at https://next-with-animated-avatar-offload.vercel.app/. It gave the following results:

Model Blocking Time Web Worker

And that’s it, Happy Coding! 😊

Access the Code at:

GitHub - faraasat/next-with-animated-avatar-offload: Example code for article - Optimize 3D Model…

Visit the Live version at: https://next-with-animated-avatar-offload.vercel.app/
